Profiles for shutters

The aluminium profiles are made of rolled sheet, powder-coated, filled with Freon-free polyurethane foam. It ensures perfect acoustic and thermal insulation.

PVC profiles are made of high-quality material (polyvinyl chloride) resistant to UV radiation.

PA-39 roller shutter profile with perforation.jpg

PA-39 with perforation

PA-39 without perforation

PA-45 with perforation

PA-45 without perforation

PA-52 with perforation

PA-52 roller shutters profile no perforation.jpg

PA-52 without perforation

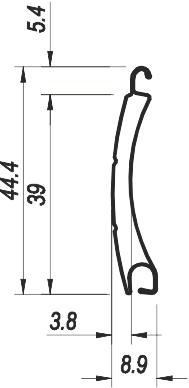

PA-39  Profile

Profile height: 39 mm (1.5")

Number of slats per meter of height: 26 pcs.

Maximum width of the shutter: 2500 mm (98")

Maximum area of the shutter: 6,5 m2 (70 ft2)

Weight of 1 m2 (10.76 ft2): 2,8 kg (6.2 lbs.)

PA-45  Profile

Profile height: 45 mm (1-3/4")

Number of slats per meter of height: 23 pcs.

Maximum width of the shutter: 3000 mm  (118")

Maximum area of the shutter: 6,5 m2 (70 ft2)

Weight of 1 m2 (10.76 ft2): 2,9 kg (6.4 lbs.)

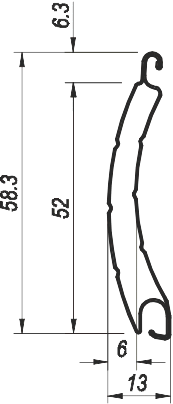

PA-52 Profile

Profile height: 52 mm (2")

Number of slats per meter of height: 19 pcs.

Maximum width of the shutter: 3700 mm (145")

Maximum area of the shutter: 8,0 m2 (86 ft2)

Weight of 1 m2 (10.76 ft2): 3,0 kg (6.6 lbs.)
